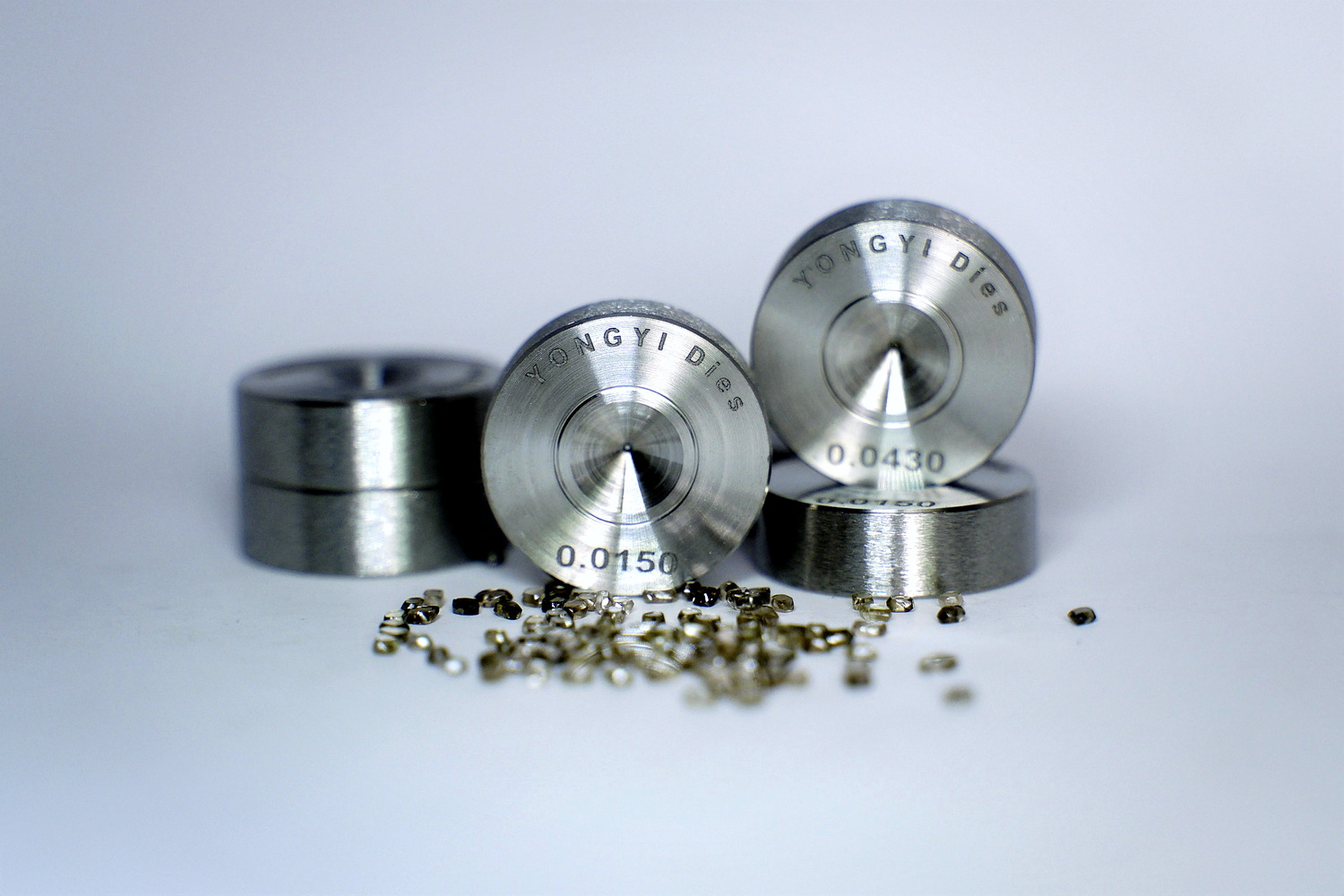

Natural Diamond Dies
Natural diamond dies for fine and ultrafine wire where low friction, surface finish and dimensional stability are critical.
View details
Yongyi Wire Dies Co., Ltd.
Precision Wire Drawing Dies for Metal Wire Production
Natural diamond, SSCD, PCD, CVD diamond-coated and shape dies, plus cable extrusion tooling, for copper, aluminum, steel, stainless steel and other metal wire.
Application-Matched Die GeometryBore, bearing and casing are matched to the wire material, target size and drawing process.
Multi-Stage InspectionDies are checked at multiple production stages; inspection reports are available on request.
Dongguan Manufacturing and SupplyLong-term tooling support backed by Yongyi's Dongguan manufacturing and local supply network.
Products
Wire Drawing Dies and Cable Tooling
Select natural diamond, SSCD, PCD, CVD diamond-coated, shape, bunching and stranding, extrusion or die-room tooling by wire material and production process.

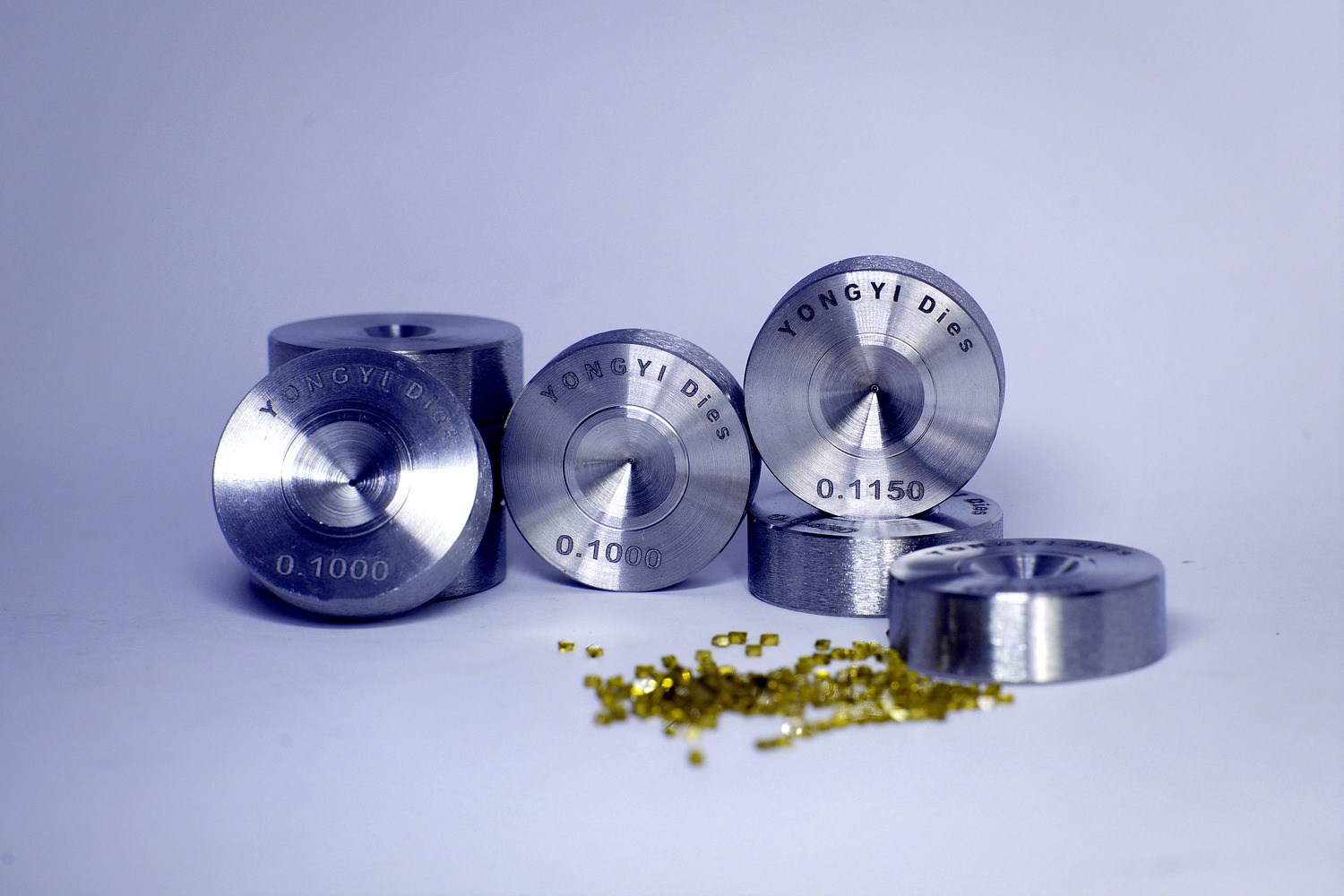

SSCD Dies
SSCD wire drawing dies for fine and ultrafine wire requiring repeatable bore geometry and a smooth drawing surface.
View details

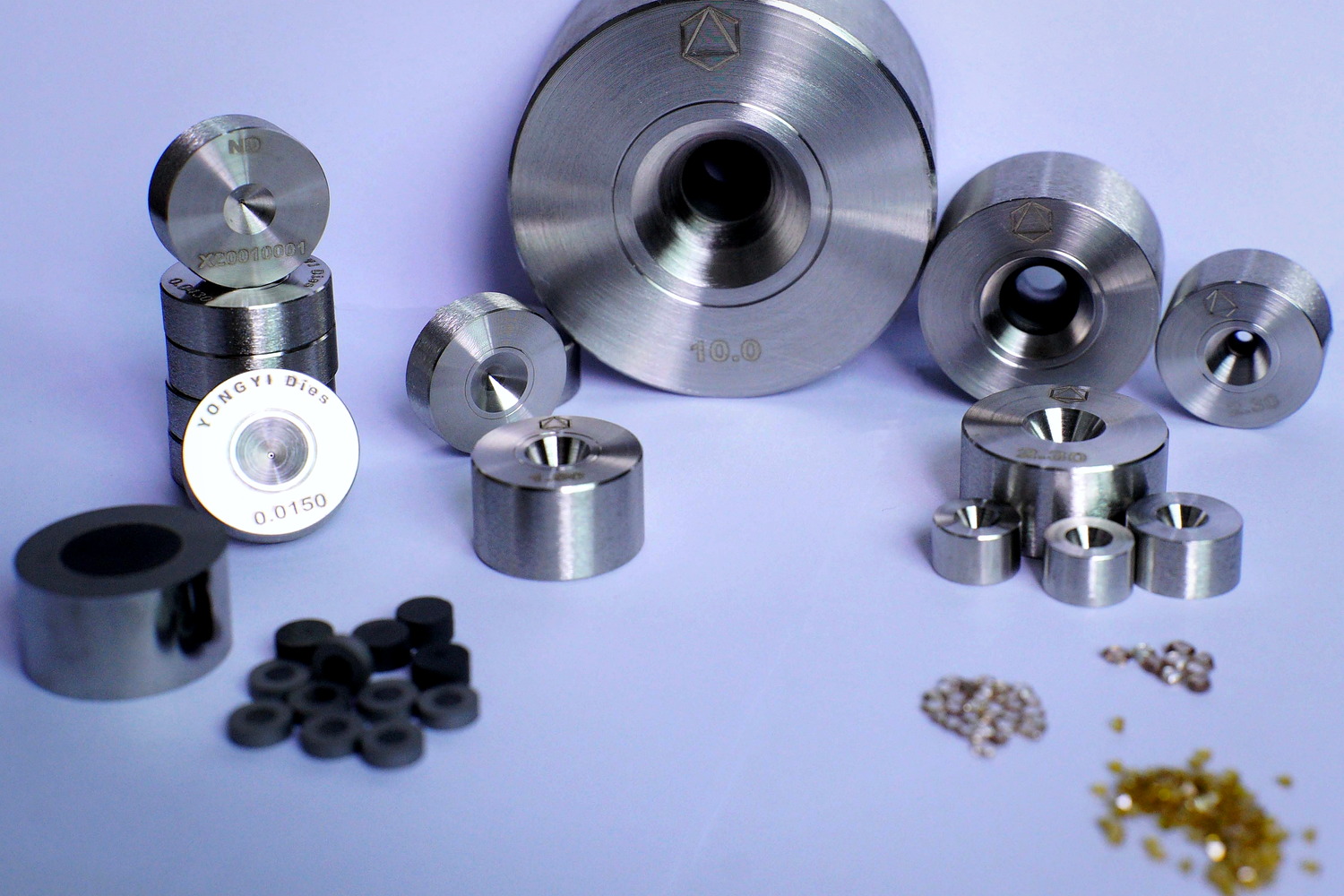

PCD Dies
Wear-resistant PCD dies for copper, aluminum, steel, stainless steel and alloy wire in continuous production.
View details
CVD Diamond-Coated Dies
Diamond-coated carbide dies for high-wear steel, stainless steel, welding wire, tube and non-ferrous cable processes.
View details
PCD Shape Dies
Custom shape dies for square, rectangular, oval, hexagonal and customer-defined wire profiles.
View details

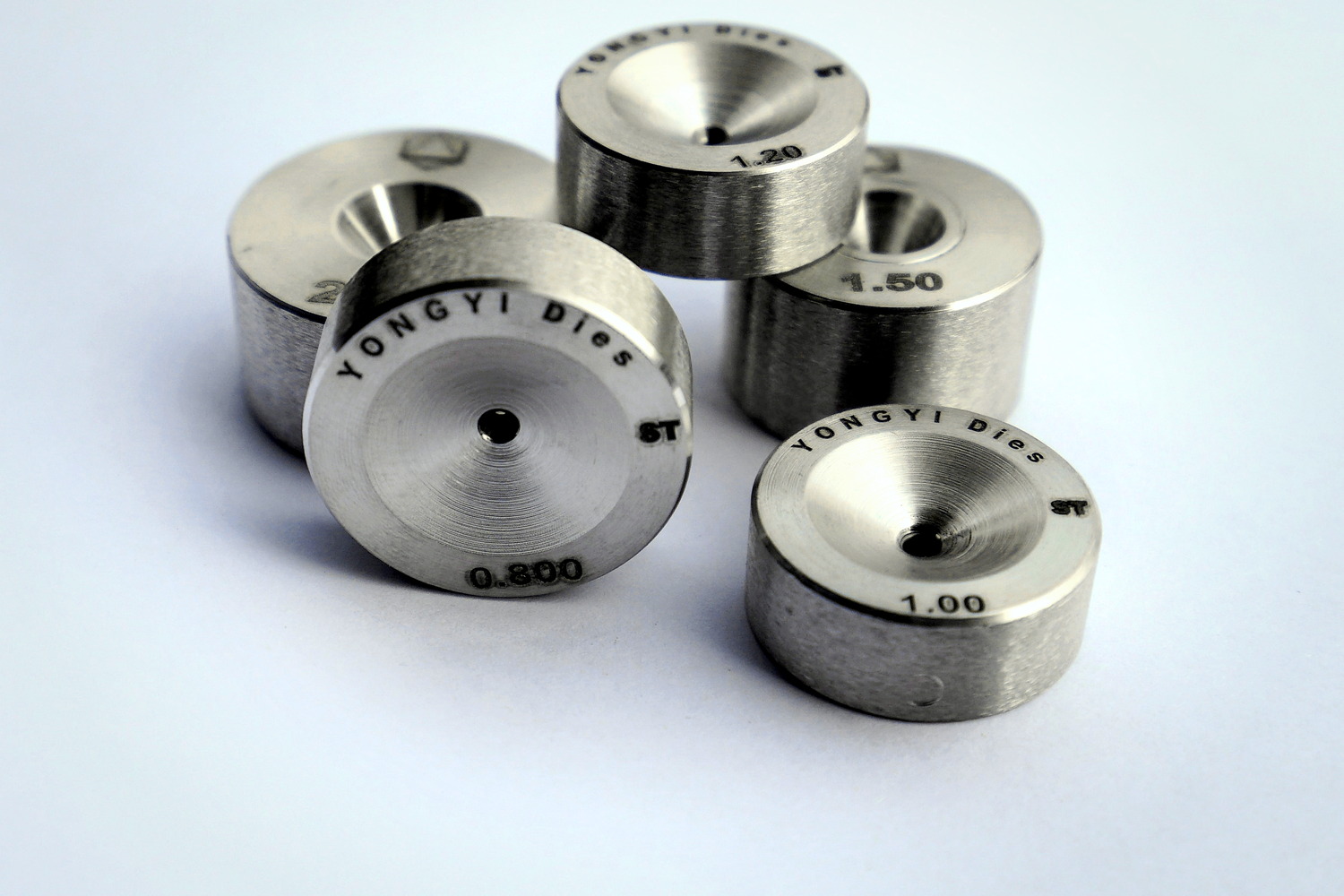

Bunching and Stranding Dies
Custom dies for guiding, bunching, stranding and compacting conductors on wire and cable production lines.
View details

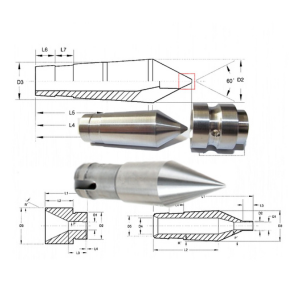

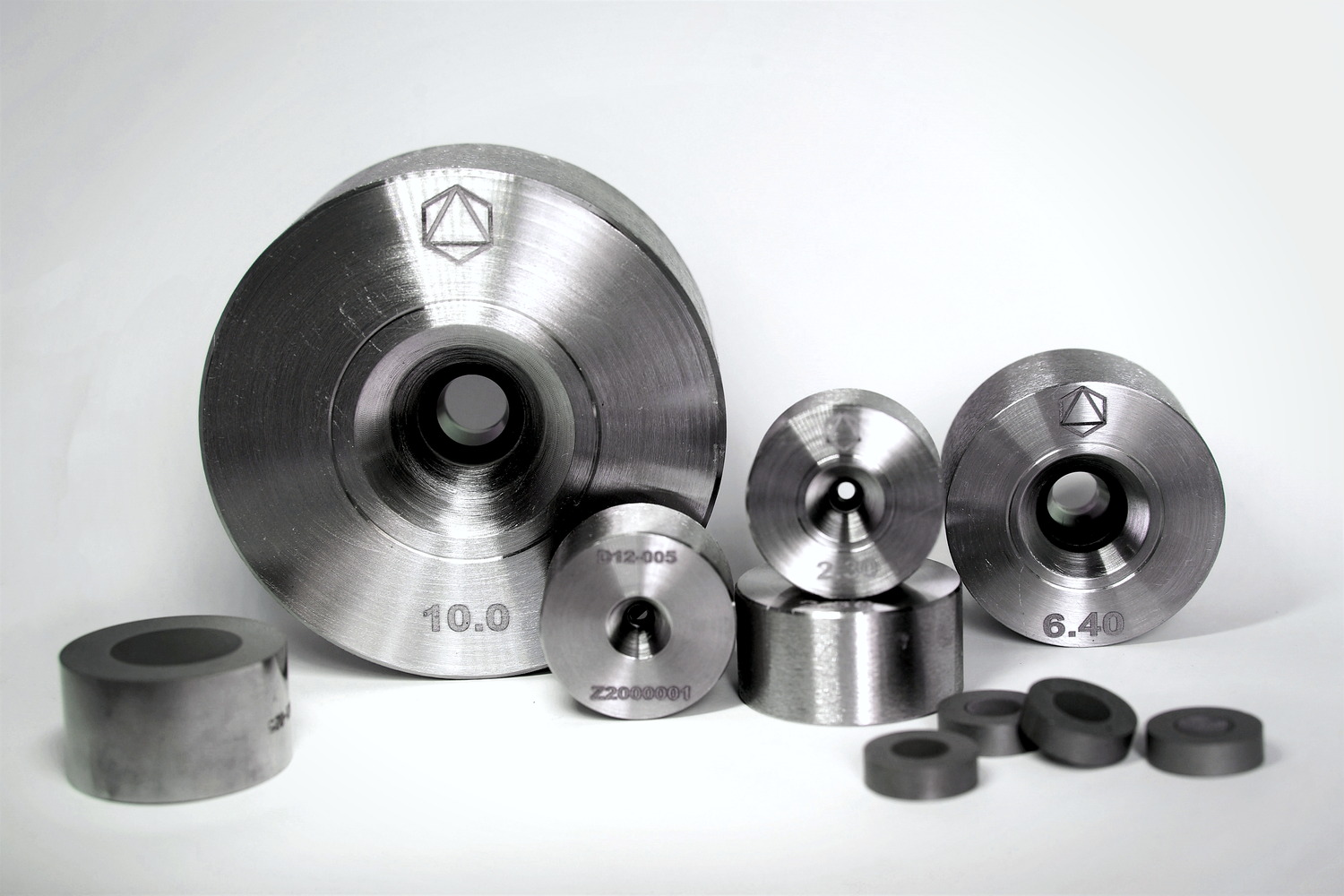

Extrusion Tips and Dies
Matched extrusion tips and dies made to drawing for wire and cable insulation and jacketing lines.
View details

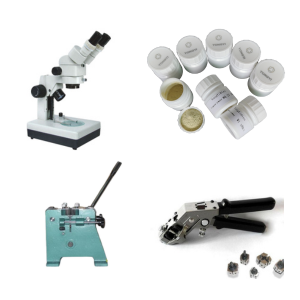

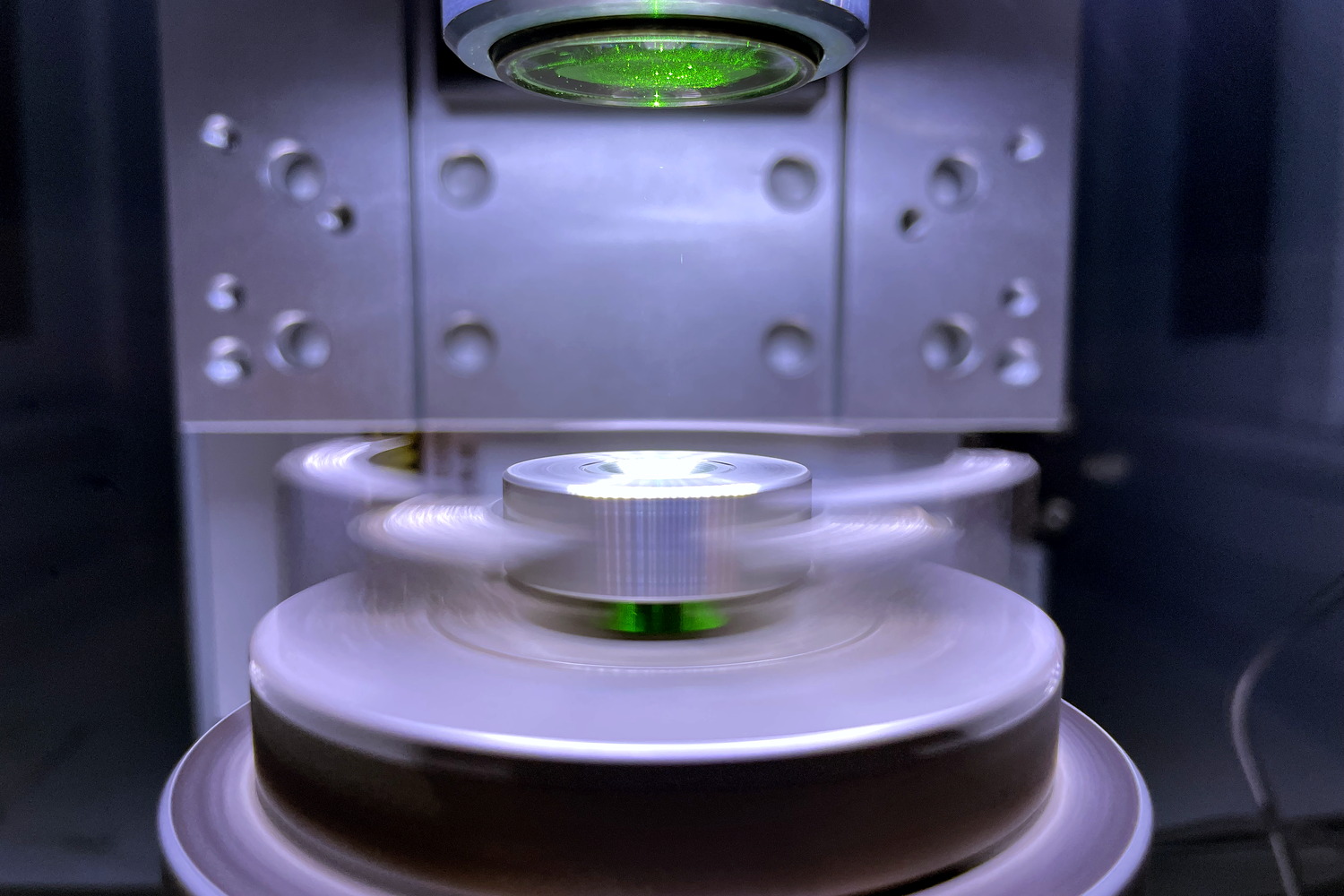

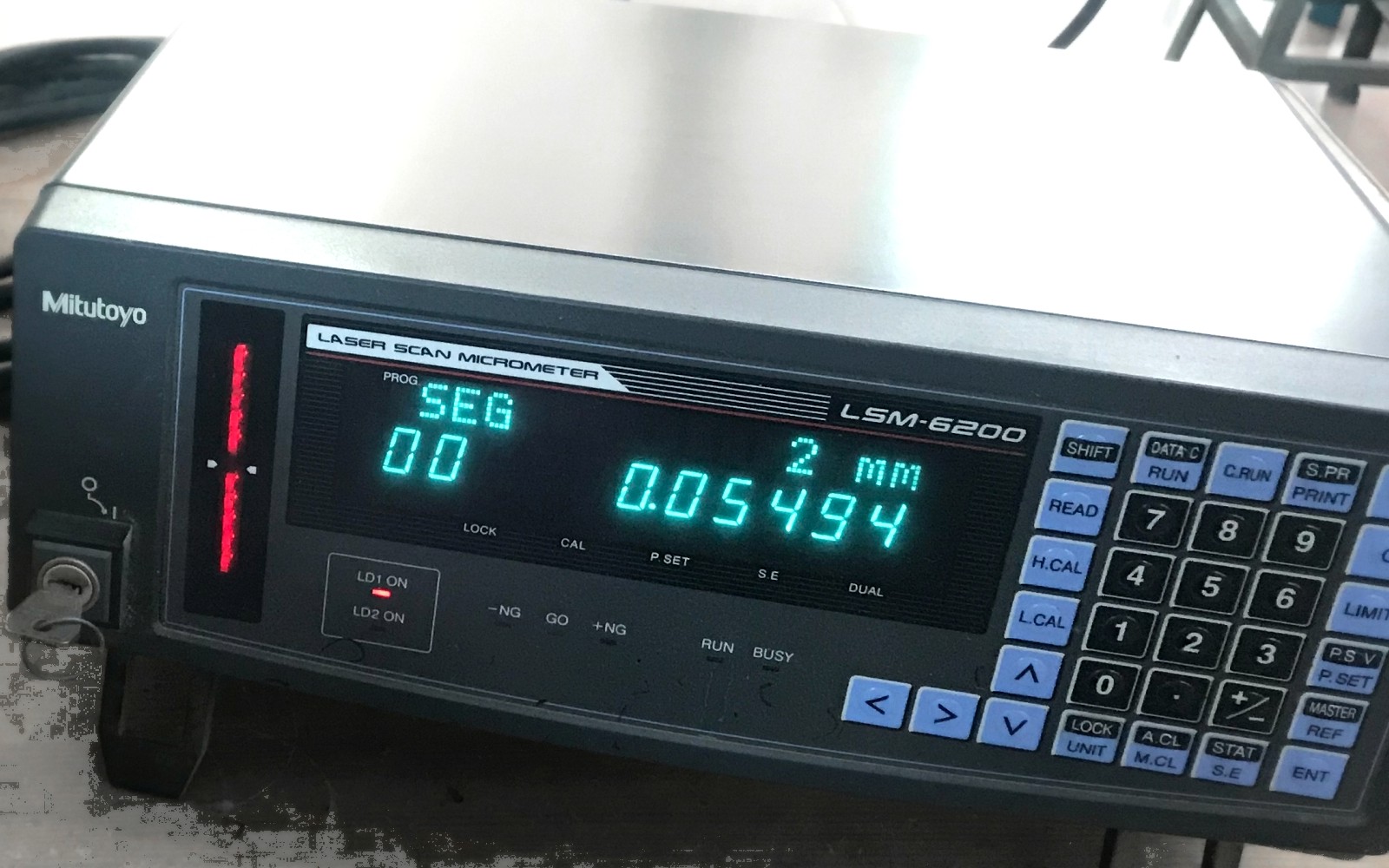

Die Room Tools
Inspection, measurement and maintenance tools for daily die-room quality control and repair decisions.
View details
Elongation Sets
Matched drawing die sequences prepared to the required pass schedule for special wire processes and production trials.
View detailsService
Support Across the Die Lifecycle
From made-to-drawing tooling to inspection, repolishing, recutting and repair, support is organized around wire material, size, surface and die-wear issues.

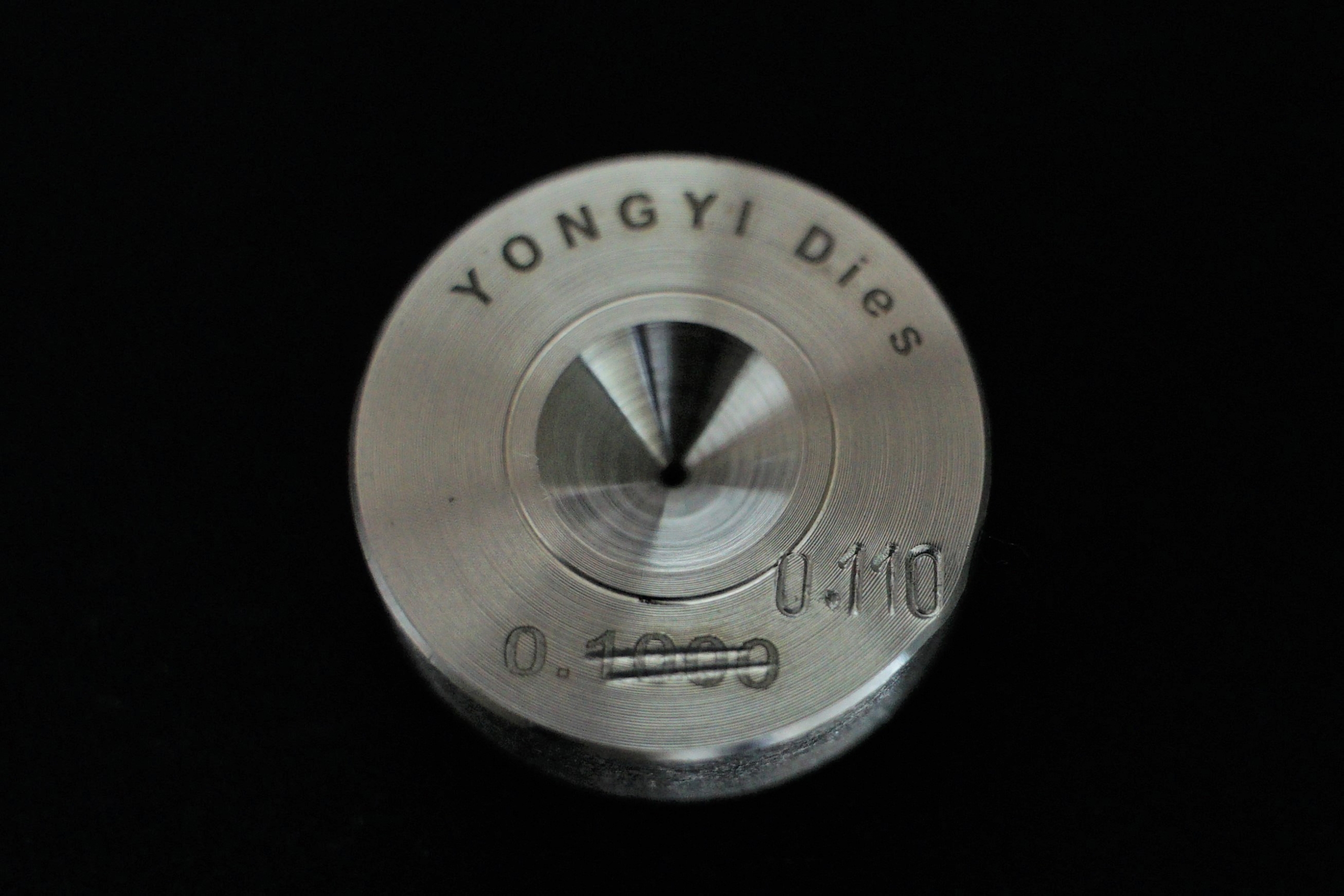

01Recutting, Repolishing and Repair
Used dies are inspected so repolishing, recutting or profile correction can be evaluated against wear and the next target size.

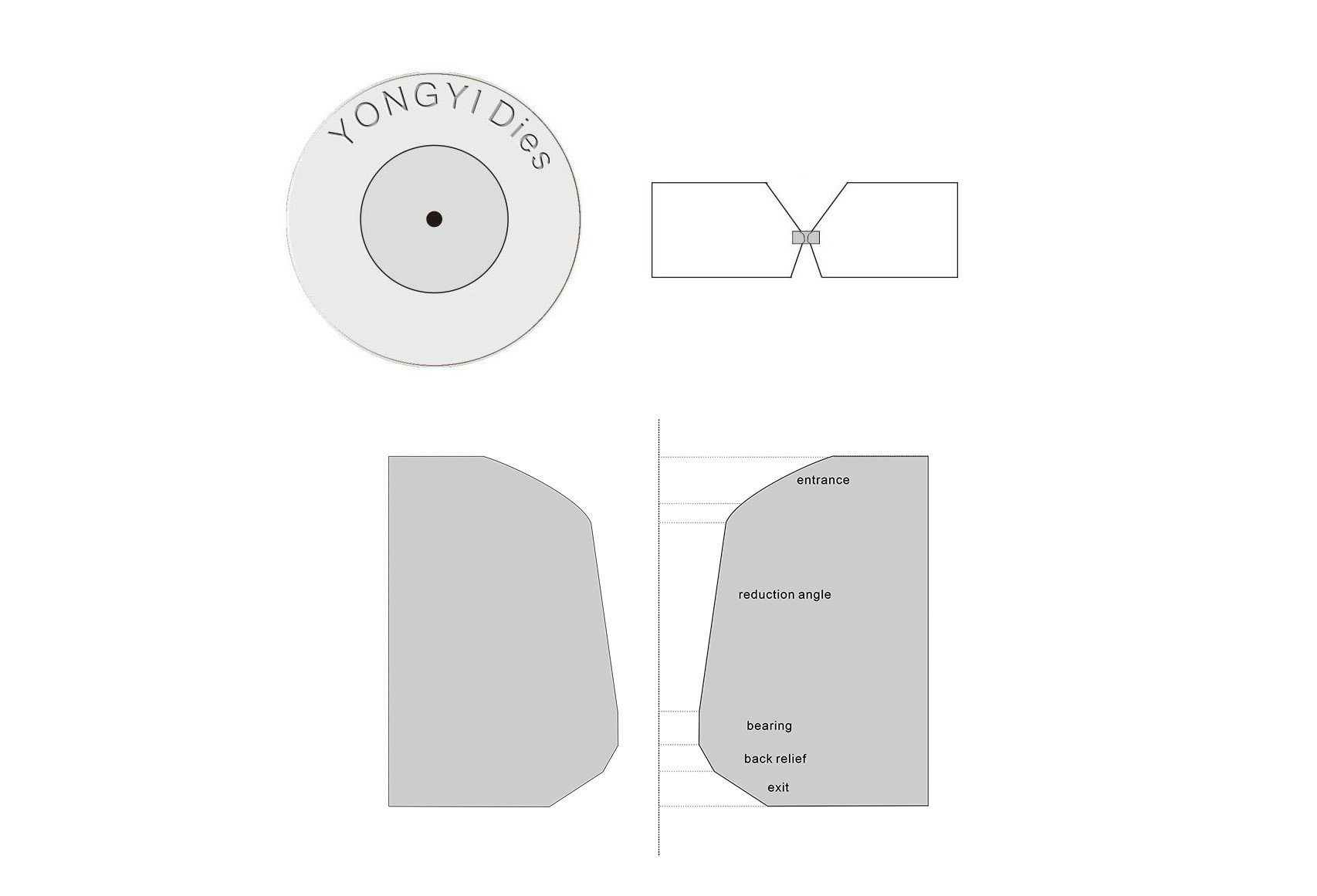

02Made-to-Drawing Tooling
Tooling is manufactured to the drawing, target hole size, casing dimensions, wire material and line conditions.
03Application and Die Selection Review
Before production, Yongyi can review the application to confirm suitable die material, geometry, surface finish and inspection requirements.

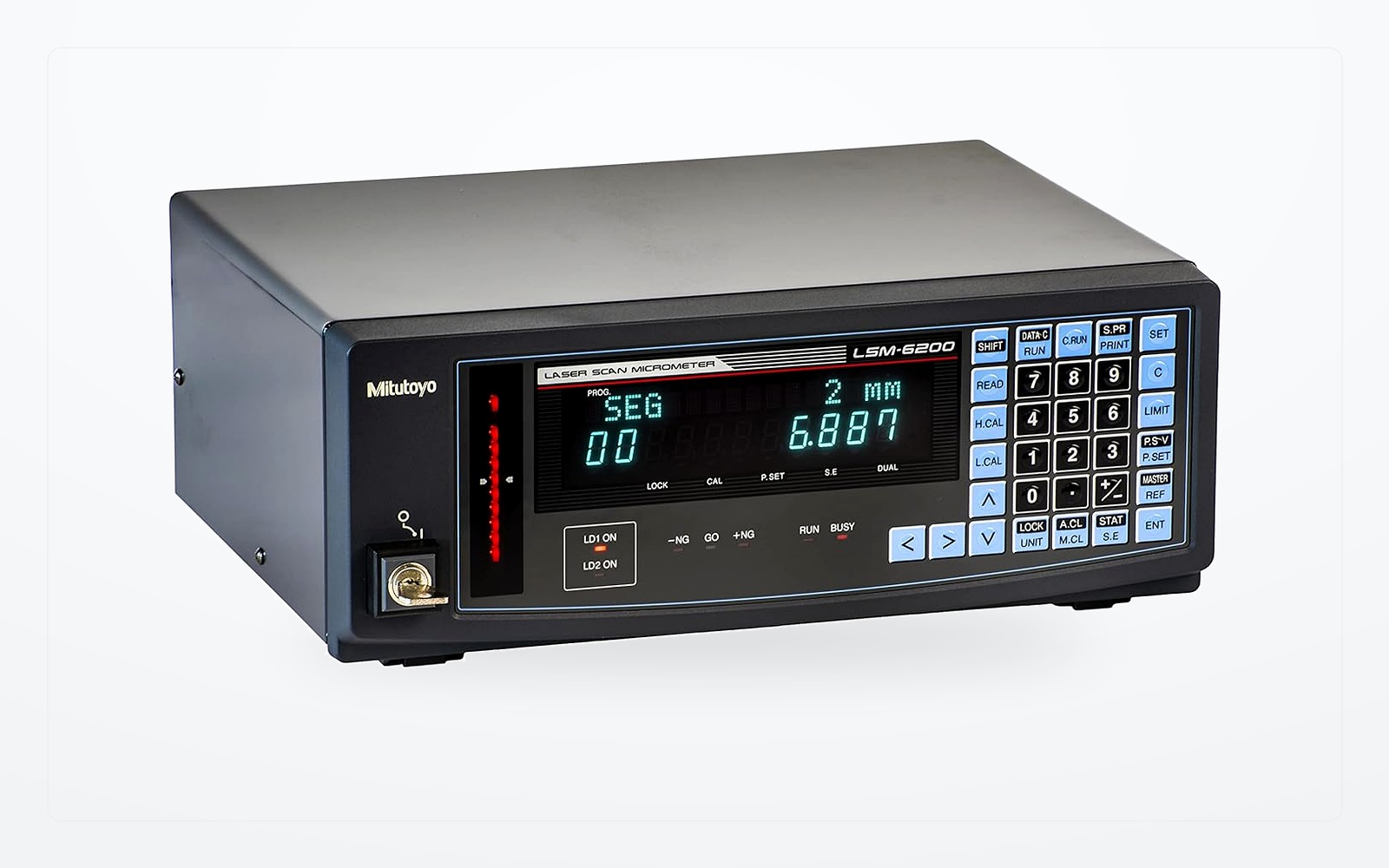

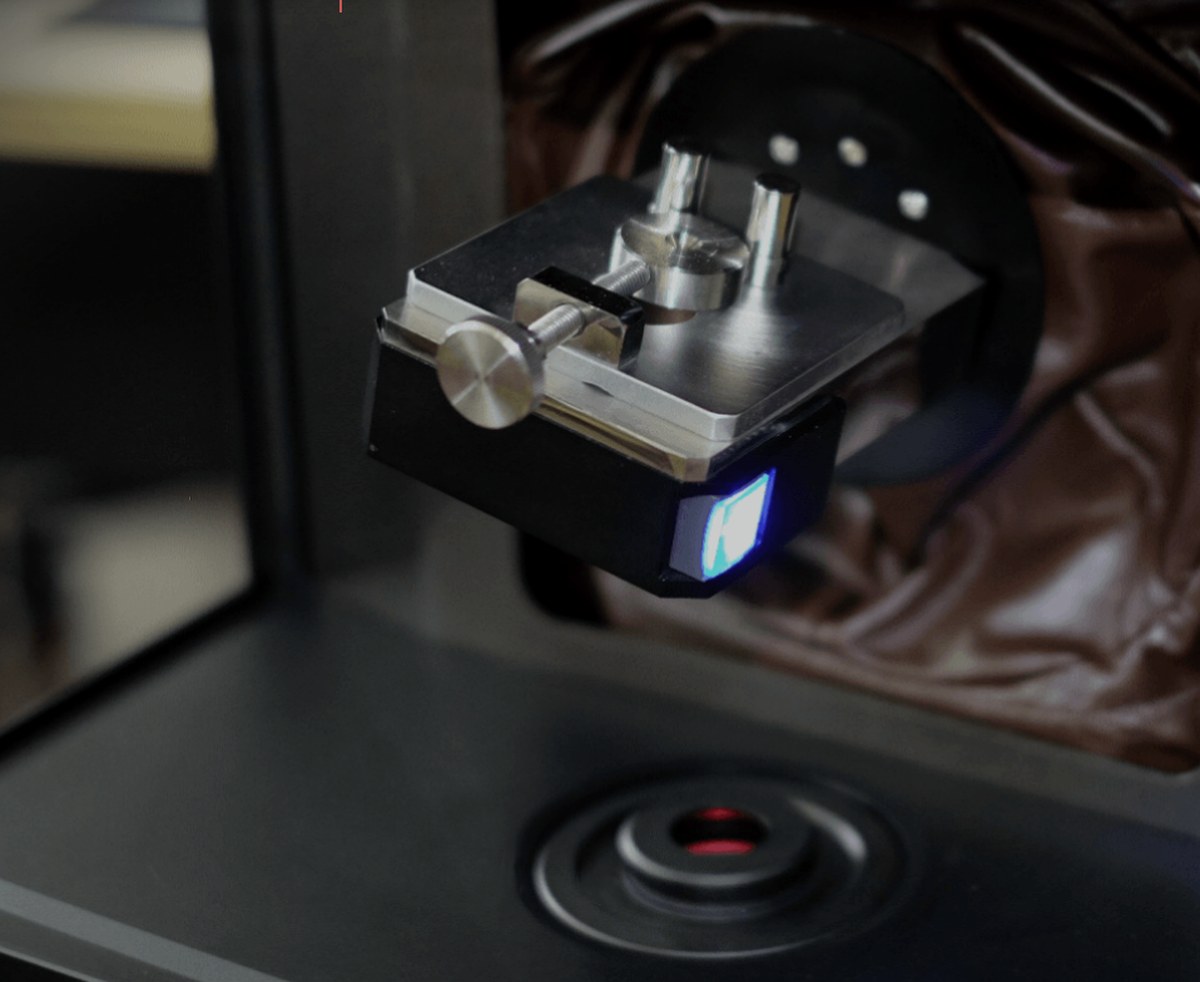

Quality Control
Inspection Built into Production
Yongyi combines die manufacturing, polishing and repair experience with inspection equipment to support stable geometry, dimensions and wire surfaces.
- Die material and geometry are reviewed against the wire material, drawing process and target size.
- Critical bore geometry and working surfaces are checked at multiple production stages.
- Inspection reports are available on request.
Send Your Drawing or Die Specification
Include the wire material, inlet and final size, die type, casing dimensions and current production issue so Yongyi can review suitable tooling.
